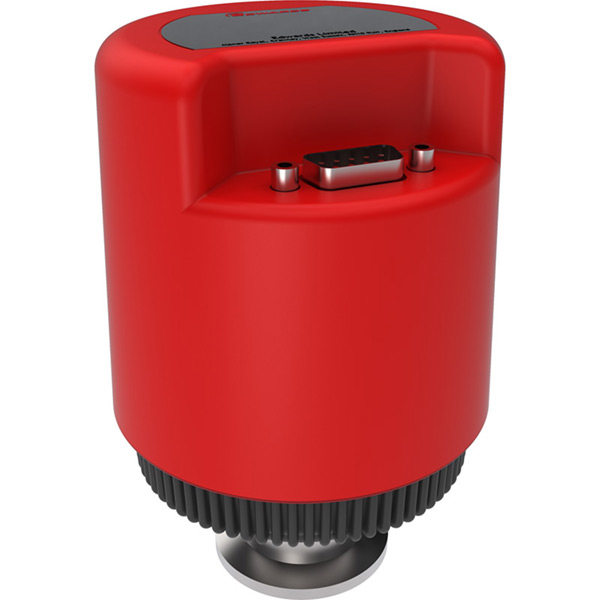

The Edwards Active Inverted Magnetron Gauges (AIM) combine the gauge-head and control electronics in one compact Active unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.
Eigenschaften und Vorteile
- Drive electronics combined in the gauge head which reduces the system cost and saves valuable rack space
- Wide-ranging, regulated, internal power supply which runs from standard d.c. power supplies of +13,5 to +36 V with a good tolerance to voltage fluctuations
- Standard analog output of 0 to +10 V d.c. and gauge identifier allowing easy interface with a computer or plc and fault output indication
- Low output impedance and integral Faraday shield provides high level of noise immunity and permits long cable runs (up to 100 m)
- Interchangeable body tube allows for rapid tube replacement without pre-calibration
- Electrode service kit allows user cleaning and maintenance
- The Unique striker design ensures rapid striking even at high vacuum or in contaminating conditions
- CSA, C/US approved
Spezifikationstabelle
Modell | AIM-S | AIM-X | AIM-XL Low Magnetic Field |
---|---|---|---|
Technologie |
Kaltkathode
|
Kaltkathode
|
Kaltkathode
|
Measurements |
Torr Min: 1,000 x 10-8 Max: 1,000 x 10-2 mbar Min: 1,000 x 10-8 Max: 1,000 x 10-2 |
Torr Min: 1,000 x 10-9 Max: 1,000 x 10-2 mbar Min: 1,000 x 10-9 Max: 1,000 x 10-2 |
Torr Min: 1,000 x 10-9 Max: 1,000 x 10-2 mbar Min: 1,000 x 10-9 Max: 1,000 x 10-2 |
Temperatur |
Betriebs- Min: 5,00 ºC Max: 60,0 ºC Min: 41,0 ºF Max: 140 ºF Storage Min: 0 ºC Max: 70,0 ºC Min: 32,0 ºF Max: 158 ºF Ausheizen 300 ºC |
Betriebs- Min: 5,00 ºC Max: 60,0 ºC Min: 41,0 ºF Max: 140 ºF Storage Min: 0 ºC Max: 70,0 ºC Min: 32,0 ºF Max: 158 ºF Ausheizen 300 ºC |
Betriebs- Min: 5,00 ºC Max: 60,0 ºC Min: 41,0 ºF Max: 140 ºF Storage Min: 0 ºC Max: 70,0 ºC Min: 32,0 ºF Max: 158 ºF Ausheizen 300 ºC |
Vakuumexponierte Materialien |
304 SS 316 SS 347 SS Fluorelastomer Glas |
304 SS 316 SS 347 SS Keramik Kupfer Fluorelastomer Glas |
304 SS 316 SS 347 SS Keramik Kupfer Fluorelastomer Glas |
Steckverbinder |
FCC68 8 Pin Female |
FCC68 8 Pin Female |
FCC68 8 Pin Female |
Typische Genauigkeit |
±30% of reading
|
±30% of reading
|
±30% of reading
|
Accuracy Range |
21 to 50%
|
21 to 50%
|
21 to 50%
|
Communications (Standard) |
Analog
|
Analog
|
Analog
|
Compliance and Standards |
CE
RoHS UL CSA |
CE
RoHS UL CSA |
CE
RoHS UL CSA |
X SCHLIESSEN
Bestelltabelle
X SCHLIESSEN
Modell | Beschreibung | Technologie | Steckverbindungstyp | Flansch | Communications (Standard) | Hinweis |
|
Teilenummer | Preis | Auf Lager | Zum Warenkorb hinzufügen | Zubehör | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Modell | Beschreibung | Technologie | Steckverbindungstyp | Flansch | Communications (Standard) | Hinweis |
|
Teilenummer | Preis | Auf Lager | Zum Warenkorb hinzufügen | Zubehör | ||||
AIM-S |
MAGNETRON GAUGE, |
Kaltkathode | FCC68 8 Pin Female | KF25 | Analog | — |
|
|
$1.321,00 |
|
|
|||||
AIM-X |
MAGNETRON, |
Kaltkathode | FCC68 8 Pin Female | KF25 | Analog | — |
|
|
$1.219,00 |
|
|
|||||
AIM-X | - | Kaltkathode | FCC68 8 Pin Female | KF25 | Analog | 1 |
|
|
Auf Anfrage |
|
|
|||||
AIM-XL Low Magnetic Field |
MESSGERÄT, |
Kaltkathode | FCC68 8 Pin Female | KF25 | Analog | 2 |
|
|
Auf Anfrage |
|
|
|||||
AIM-XL Low Magnetic Field |
- | Kaltkathode | FCC68 8 Pin Female | KF25 | Analog | 1 |
|
|
Auf Anfrage |
|
|
|||||
AIM-X |
MESSGERÄT, |
Kaltkathode | FCC68 8 Pin Female | DN40CF | Analog | — |
|
|
Auf Anfrage |
|
|
|||||
AIM-X | - | Kaltkathode | FCC68 8 Pin Female | DN40CF | Analog | 1 |
|
|
Auf Anfrage |
|
|
|||||
AIM-XL Low Magnetic Field |
- | Kaltkathode | FCC68 8 Pin Female | DN40CF | Analog | 2 |
|
|
Auf Anfrage |
|
|
|||||
AIM-XL Low Magnetic Field |
- | Kaltkathode | FCC68 8 Pin Female | DN40CF | Analog | 1 |
|
|
Auf Anfrage |
|
|
